Containerised Sludge Dewatering
Simplified Containerised Sludge Dewatering Rental Equipment

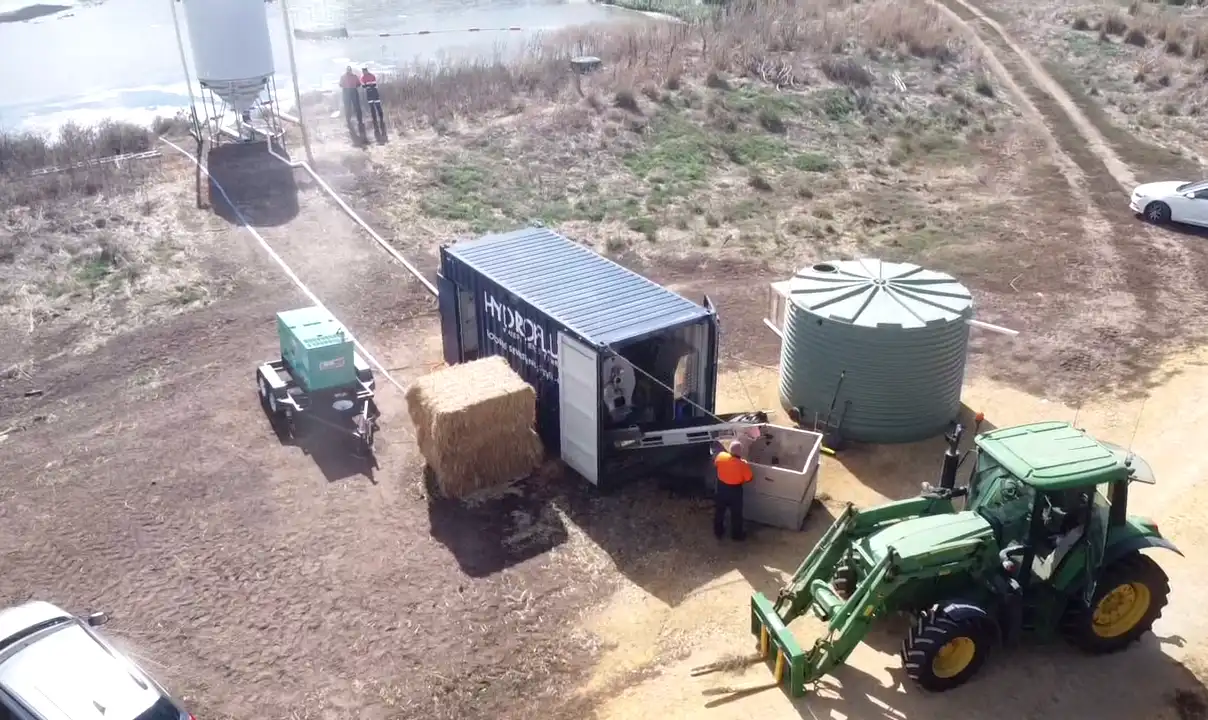

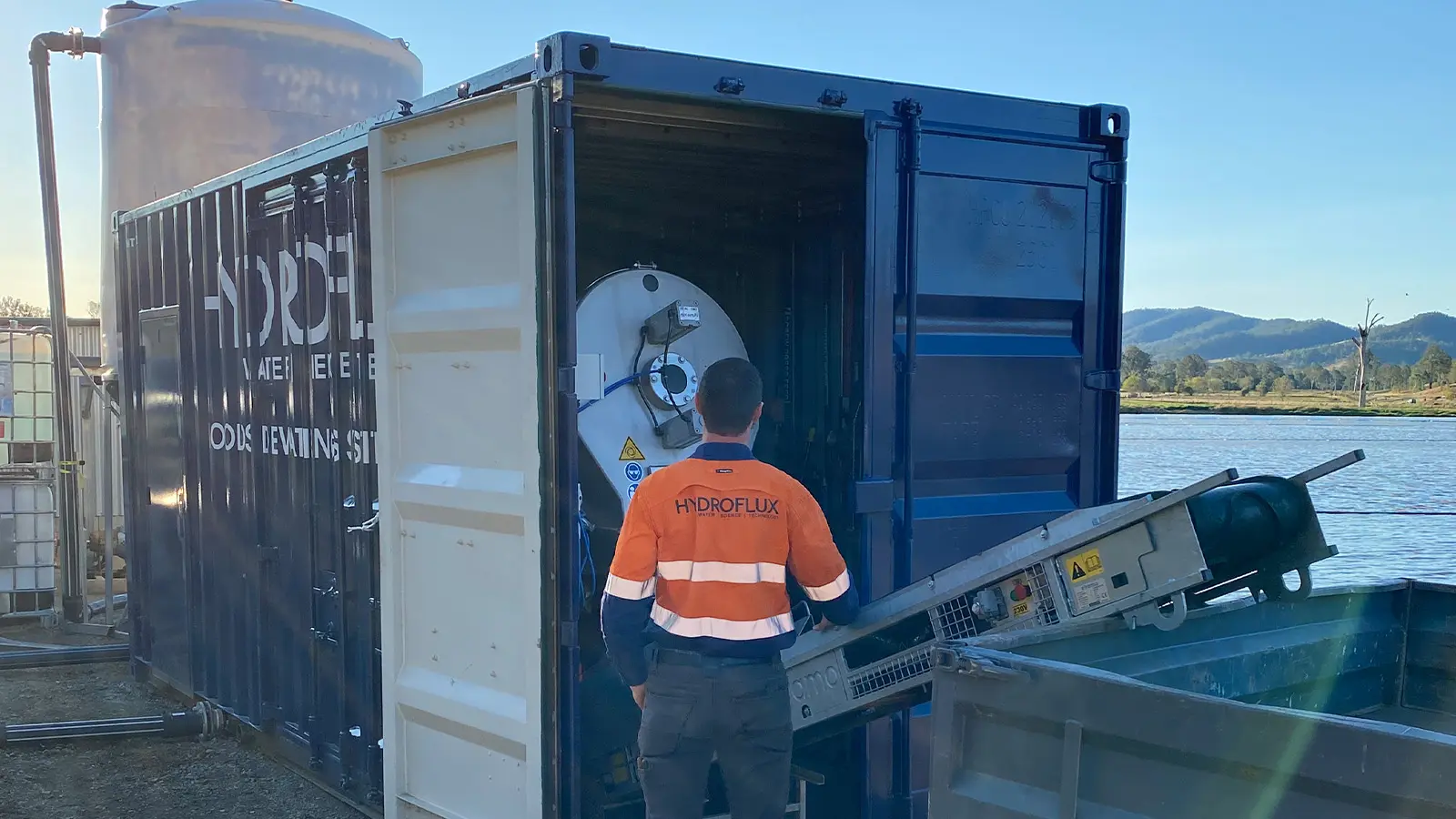

Hydroflux provides an efficient solution for short-term sludge management with advanced sludge dewatering rental equipment. Perfect for temporary or emergency situations, this equipment also offers a “try before you buy” option, ensuring it meets your needs perfectly. This fully equipped containerised sludge dewatering plant features advanced HUBER screw press technology, known for its low energy consumption and minimal maintenance requirements. This makes the rental plant easy to maintain, even in locations with limited accessibility for operators, ensuring reliable performance in any setting.
What to Expect
- High-Quality Equipment: Access to the latest, efficient screw press models designed for optimal performance.
- Consumables: Proprietary and specialised chemicals to optimise the performance of the unit.
- Flexibility: Short-term or long-term rental options to suit project-specific or temporary needs.
- Expert Support: Comprehensive technical support and maintenance included in the rental agreement.
- Prompt Delivery: Timely delivery and setup of equipment to minimise downtime
- Training: On-site training for your team to ensure proper operation and maintenance of the equipment.
Applications
- Municipal Wastewater Treatment: Dewatering sludge from municipal sewage treatment plants.
- Industrial Wastewater Treatment: Managing sludge in various industries such as food and beverage and other manufacturing facilities.
- Temporary Projects: Providing dewatering solutions for short-term projects or pilot testing.
- Emergency Situations: Offering a quick and effective solution during equipment breakdowns or failures.
- Construction Sites: Managing wastewater and sludge generated during construction activities.
- Mining Operations: Handling sludge and wastewater produced in mining activities.
Installation Requirements

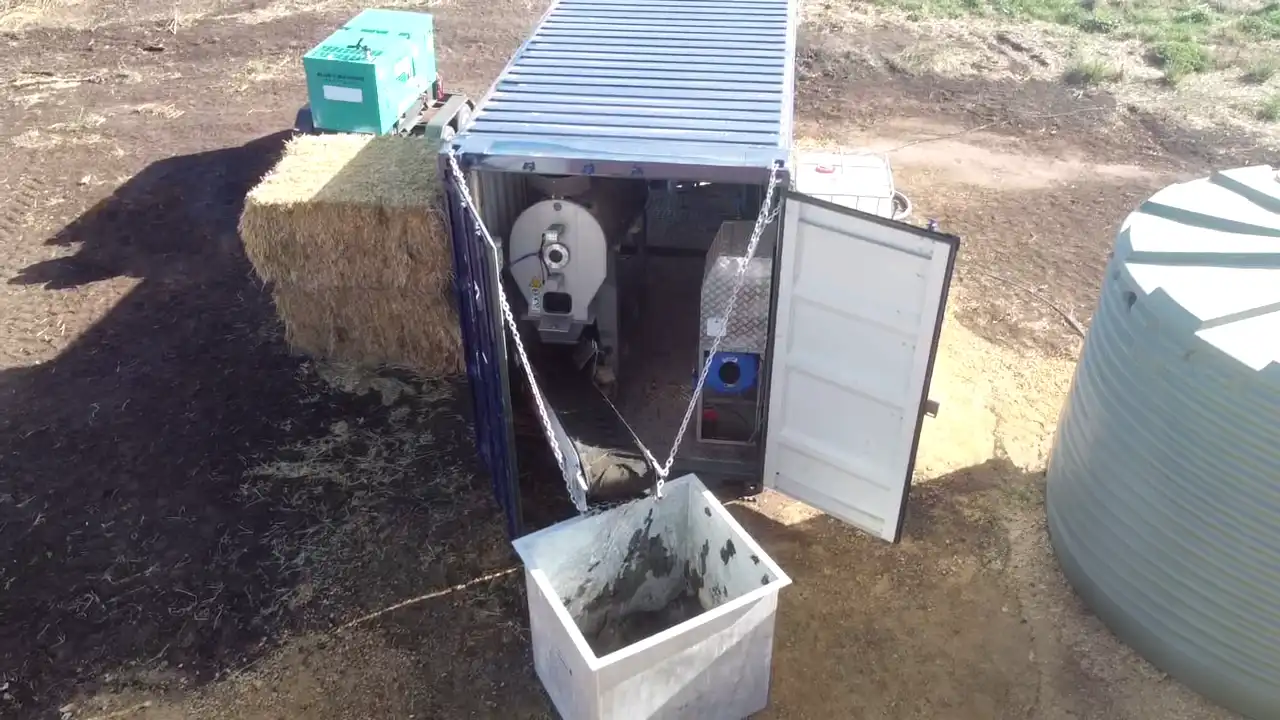

The core of the containerised sludge dewatering rental equipment is a HUBER RoS3Q 440.2 inclined screw press, capable of handling a sludge capacity of up to 5000 L/hr, depending on the application.
The installation place must meet the following requirements:
- Flat surface ≈ 8 x 5 metres (for 20-foot container)
- Floor loading capacity ≈ 8,000 kg
- Potable water ≈ 500 L/hr
- 3-phase power ≈ max. draw up to 36 Amps (connect via containers 50 Amp 5-pin inlet socket)
- Ability to remove spadable sludge
- Somewhere to pump the supernatant
Dimensions
- Length: 6100 mm
- Width: 2500 mm
- Height: 2800 mm
Control system
The panel contains a 6” HMI whereby full control is provided for the entire dewatering system, including the polymer plant.
Additional Information on Sludge Dewatering Rental Plant

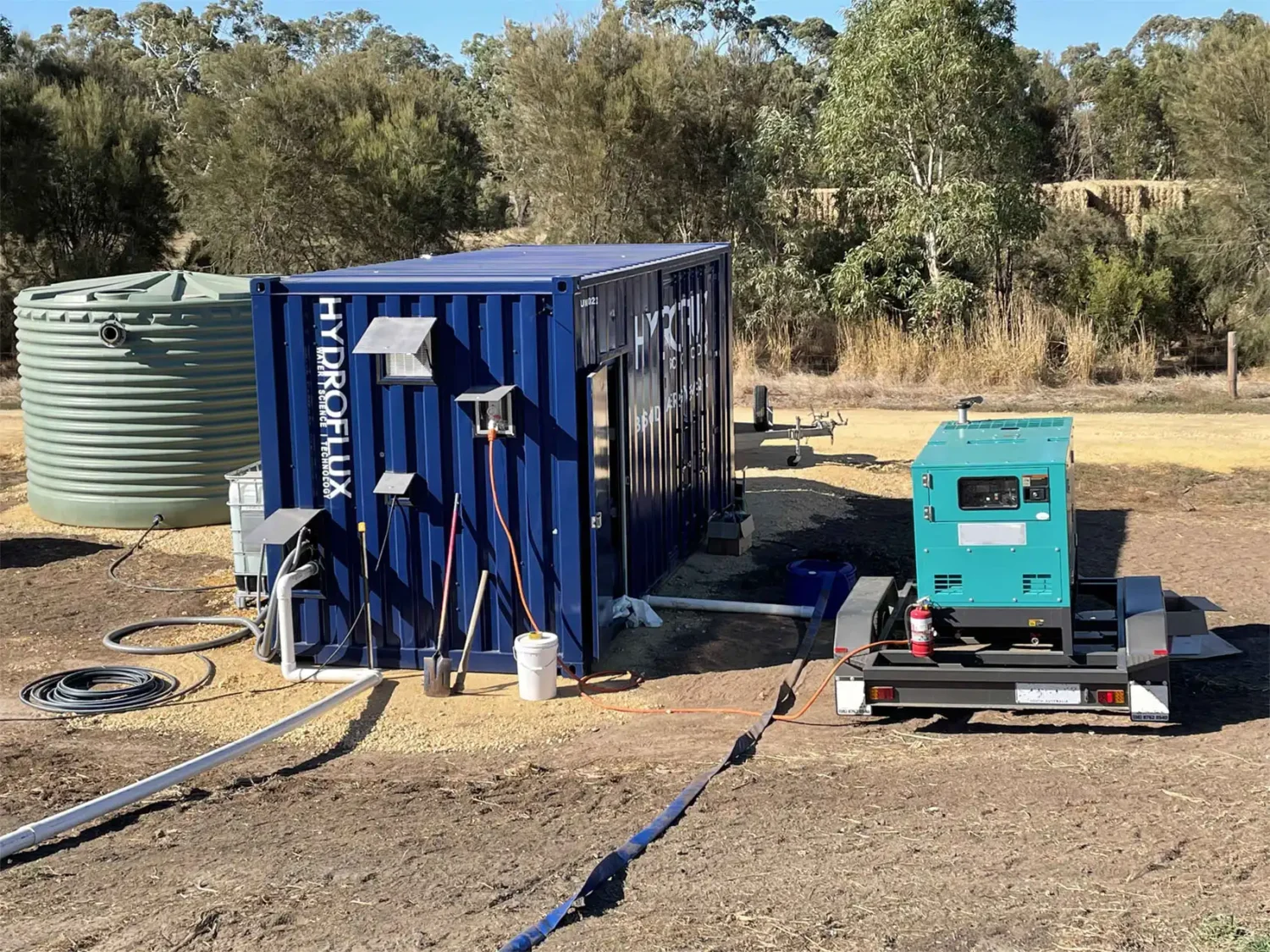

The containerised system is fitted with the following components enabling operation within a day
- Screw press feed pump (500–5000 L/hr)

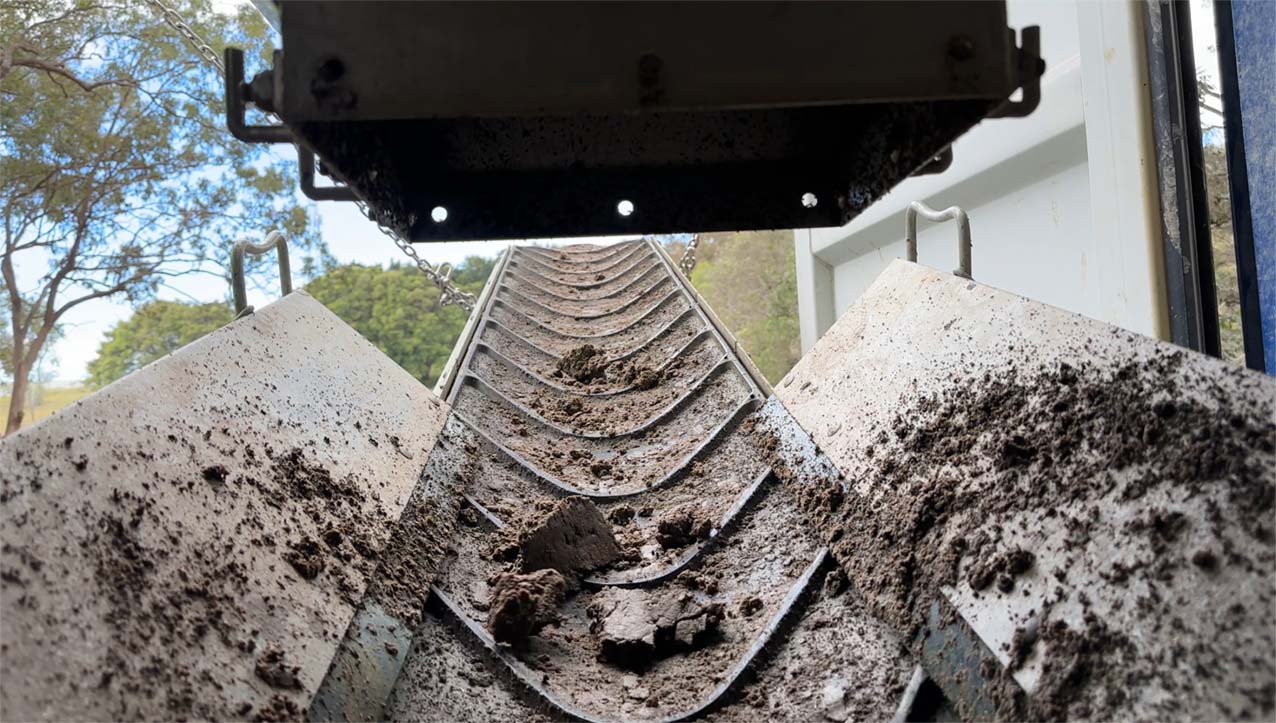

- 3-metre conveyor to move dewatered sludge
- HUBER Screw Press Q-PRESS® 440.2
- Automatic emulsion polymer preparation unit
- Flow-paced (30–300 L/hr) prepared polymer dosing pump
- HUBER inline sludge/prepared-polymer mixing unit
- Potable (mains) water booster pump
- Secondary dilution water pump (for sludge or polymer)
- Supernatant (sump) pump
- Interior lighting, exhaust fan
- Air compressor, retractable water hose
- Container-wide channel-and-grate drainage
- Remote log-in and operation (via mobile network)
- Usage recording of power, each potable water line, prepared polymer, and feed sludge volumes
- Additional 3 x 3-phase 4-pin 20 Amp power outlets
- Additional 4 x 1-phase 10 Amp power outlets
Enhance Your Installation with Optional Components
Our advanced water treatment and management systems can be customised with a variety of optional components, each designed to address specific challenges and enhance operational efficiency. These optional upgrades ensure your setup is perfectly tailored to meet the unique conditions and requirements of your site.
- Reverse Osmosis System: For locations dealing with high Total Dissolved Solids (TDS), high hardness, or high alkalinity, our optional reverse osmosis system is ideal. This system pre-treats polymer make-up water, optimising performance by preventing scale and other common issues associated with hard water.
- Conical-Bottom Sludge Feed Tank: Our optional 10 kL conical-bottom sludge feed tank is equipped with a level sensor and is designed to buffer the supply of thin sludge from your pond or process stream. This tank stabilizes the feed rate, improving the efficiency of the downstream processing and ensuring smoother operations.
- Pontoon and Submersible Sludge Pump: Tailor your system for effective sludge removal with our optional pontoon setup, which includes a submersible sludge pump and floated pipework. This setup is essential for efficiently extracting thin sludge from ponds or lagoons, ensuring consistent operation and preventing downtime due to sludge accumulation.
- Grinder Unit: Integrate a grinder unit into your thin-sludge line to enhance the functionality of your containerised dewatering plant. This grinder is specifically designed to handle and reduce entangled fibers, and other challenging materials, thereby preventing blockages and maintaining the efficiency of the system.
Data Sheets
Please see the file below for details and performance information on using the screw press in a variety of applications.
Inclined Sludge Press for Industrial Applications
